HiPERSolv™ Aqueous Photo Resist Stripper for Bump Processing

ACL-585 HiPERSolv™ is a new generation of high performance aqueous resist stripper specifically

High performance is achieved through the use of patent-pending, non-corrosive chemistry compatible with Pb/Sn, Sn/Ag, Al, Ti, Cu, Ni, Cr and other thin films found in bump and UBM layers. The product is 100% water soluble and does not require an intermediate post process solvent rinse. ACL-585 can also be used for through-silicon via (TSV) applications and other thick resist processes such as those found in MEMS manufacturing.

ACL-585 HiPERSolv™ is suitable for batch immersion and batch spray applications and is able to remove advanced dry film resists at temperatures below 70°C. Maximum cycle time is 30 minutes, achieving a wafer throughput that is up to four times faster than with previous strippers.

:  Process Benefits

• Will not attack Bump Contacts or UBM
• Effective on both eutectic and lead-free wafers
• Etch rates of Pb, Sn, Al, Ag, Cu, Ni  < 1 A/min
• No attack to DuPont / Hitachi Polyimide films
• No NMP DMSO or TMAH
• Superior 300 mm uniformity- 100% residue free
• Water soluble solution
• Long bath life (>72 hrs)
• Low operation temp (<65C)
• Strip times of 20 - 60 minutes

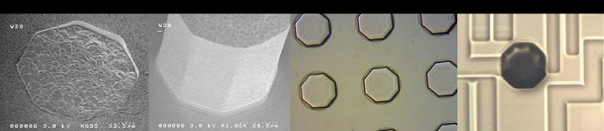

Before dryfilm resist strip

After dryfilm resist strip

After 30 minute resist strip at 60°C

Results on actual process wafer
